Metal Roof Waterproofing

Metal roofs are widely used in large-span buildings like industrial plants, stadiums, and airports due to their light weight, high strength, quick installation, and design flexibility. However, metal's significant thermal expansion and contraction, along with numerous seams and fastener penetrations, create potential leakage points vulnerable to temperature changes and vibration. Waterproofing materials must therefore exhibit excellent flexibility, weather resistance, UV stability, and strong adhesion to metal substrates. High-elasticity, aging-resistant systems can accommodate metal roof movements, seal all joints and fasteners, and provide long-lasting protection, keeping the interior safe from weather elements.

METAL ROOF WATERPROOFING PRODUCTS

JOYA FN HYDRALIA

JOYA FN HYDRALIA is a single-component waterborne acrylic waterproof coating. Ready to use, it forms a dense, tough, water/weather-resistant film with strong adhesion for long-term immersion projects.

View Product

Unique Challenges in Metal Roof Waterproofing Design

Temperature Deformation and Stress Concentration

Metals have high coefficients of thermal expansion, causing significant expansion and contraction of roofing sheets due to daily and seasonal temperature changes. This repeated movement generates concentrated stress around fasteners and seam overlaps. If the waterproofing system lacks adequate flexibility, cracking or detachment easily occurs at these points, creating leakage paths.

Complex Joints and Penetration Treatments

Metal roofs feature numerous structural details, including seam overlaps, ridge covers, eaves flashings, and numerous fasteners. Additionally, penetrations such as ventilation ducts, skylights, and equipment bases are common. These areas, with their complex configurations and limited installation space, represent the weakest points in waterproofing design and require specialized detailing and sealing measures.





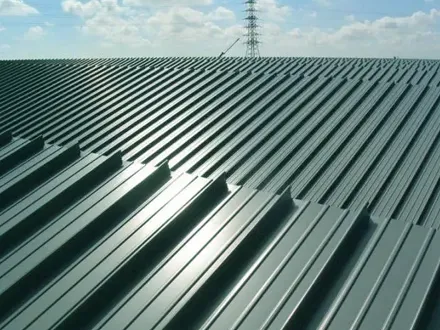

Temperature Deformation and Stress Concentration

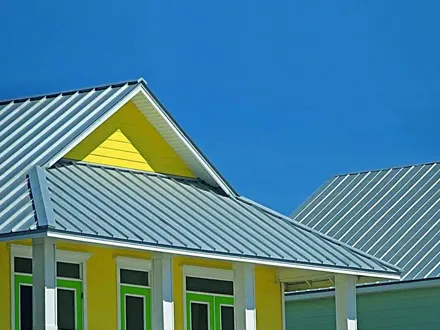

Complex Joints and Penetration Treatments

Factors Affecting the Durability of Metal Roof Waterproofing Systems

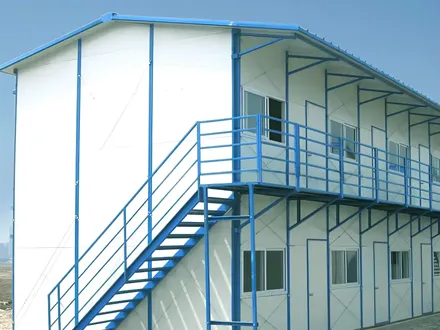

Environmental Erosion and Aging Effects

Metal roofing systems face constant outdoor exposure to UV radiation, acid rain, industrial pollutants, and marine salt spray. UV degrades polymers, causing brittleness and cracking, while acid rain and salt accelerate chemical breakdown at the waterproofing-metal interface. This weakens adhesion and leads to premature system failure as protective properties progressively decline.

Mechanical Stress and Substrate Displacement

Beyond thermal effects, wind loads, snow loads, and building settlement impose mechanical stresses on metal roofing. These forces cause tensile, compressive, or shear deformations in the waterproofing layer; inadequate material resilience results in fatigue failure. Panel vibrations also create continuous micro-abrasion on the membrane, compounding damage and reducing service life.





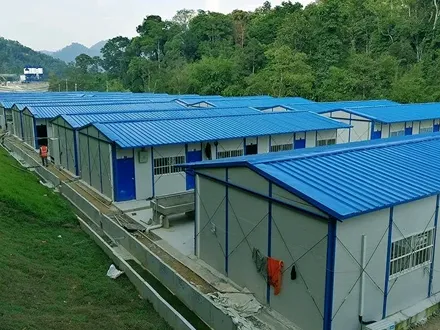

Mechanical Stress and Substrate Displacement

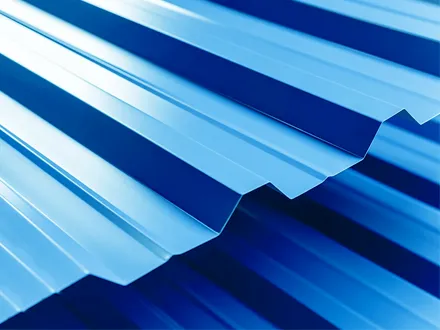

Special Considerations for Metal Roof Renovation

Renovating old metal roofs is more complex than new construction, requiring comprehensive assessment. Check corrosion levels, loose fasteners, and surface flatness—severely rusted or deformed areas need replacement. Thoroughly clean old coatings, oil, and rust, using sandblasting if necessary. Redesign critical details like gutters and penetrations to meet current standards. Select compatible materials ensuring interfacial bonding reliability. Construction typically proceeds without removing the original roof, requiring attention to loads, personnel safety, and protective measures. Successful renovation restores waterproofing and extends service life.
